Description

Convert sample rates between all of your interfaces!

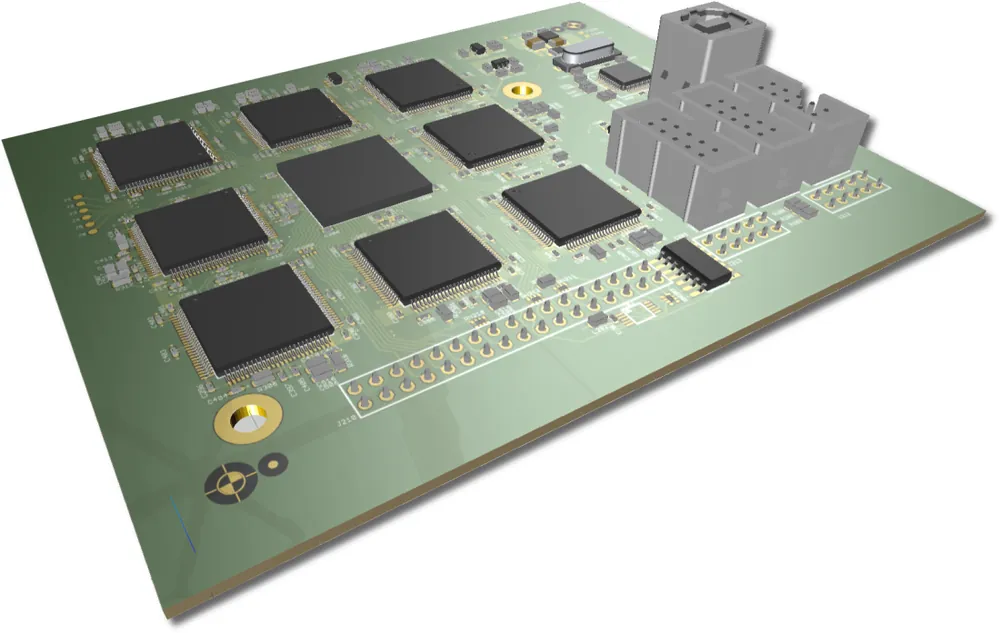

To add even more power to your multiverter, a sample rate converter hardware module is available. It features 64×64 channel bi-directional, asynchronous sample rate conversion between two arbitrary sample rates and interfaces. Finally you can convert 96kHz streams into 48kHz and vice versa, or accept any incoming signal without caring about the master clock!

Features

Top-notch performance: THD+N = -133dB typ, -120dB max.
True asynchronous, bi-directional conversion of 64×64 channels
Supports arbitrary sample rates in the range from 32…192kHz
Handles up to 64ch@48k, 64ch@96k, 32ch@192k
Free selection of any multiverter interface as asynchronous input and/or asynchronous output
Special aggregation modes exist to handle 64ch@96k by using two inputs and/or outputs together
Fully configurable via multiverter’s menu, configuration saved in presets
Asynchronous domain can be clocked from any input, or via internal hi-precision clock
Can be disabled if required with a few clicks
Mounts on internal socket: back extension port remains available
Field-upgradable firmware
