Description

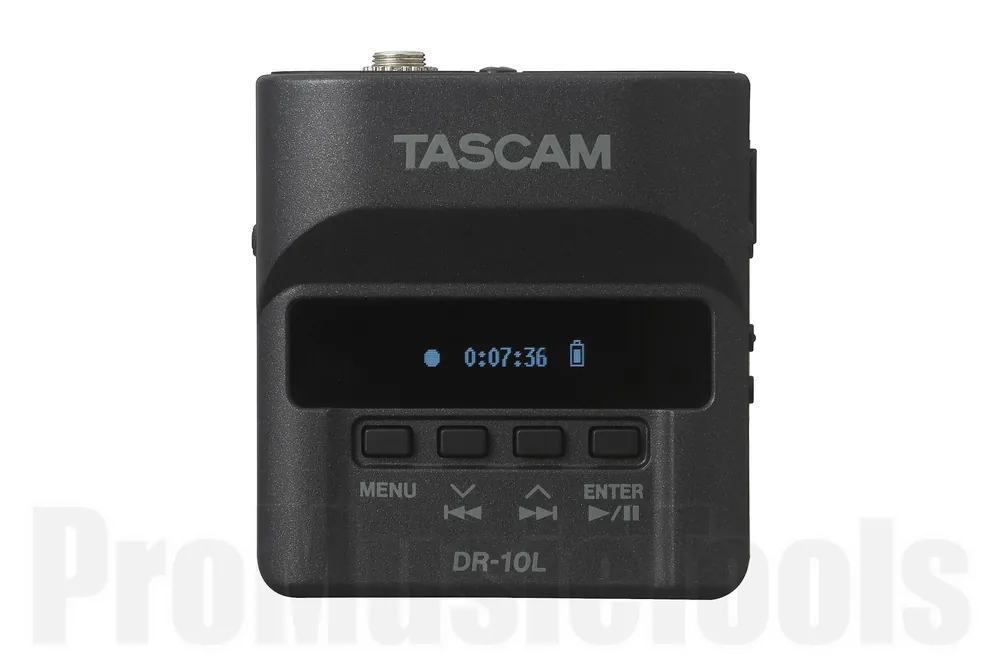

Tascam DR-10L

The DR-10L is an ultra-compact digital recorder / lavalier microphone combination. Designed for both the creative filmmaker and the busy videographer, it is a powerful problem solver providing professional sonics and high convenience. For location recording, a DR-10L can be mounted to each on-camera actor, making booms, wires or expensive (and unpredictable) wireless systems unnecessary. The DR-10L is also an inspiring tool for the experimental audio designer thanks to its portability, high quality and a tiny, professionally specd microphone.

For added flexibility, the included wired lavalier microphone is affixed via a screw connector compatible with most Sennheiser lavalier microphones and other mics with the same connector.

Features at a glance

• Micro-sized audio recorder with lavalier microphone, microphone clip and windscreen included (cable length: 160 cm)
• Records to microSD/microSDHC card (up to 32 GBytes)
• Linear PCM mono/poly recording at 44.1/48 kHz, 16/24 bits
• BWF-compatible WAV format allows inclusion of time information within audio files
• Recording and playback of MP3 format files
  • Sampling rate: 44.1/48 kHz, resolution: 16/24 bits
  • Bit rate: 128/192 kbit/s (recording), 32320 kbit/s (playback)
• Switchable limiter to prevent clipping
• Switchable low-cut filter to reduce low-frequency noise
• Low/Mid/High/High+ recording level settings
• Automatic level control available
• Dual recording function allows two files to be recorded simultaneously at different levels to provide a safety track in case of distortion (level reduction for secondary recording selectable 6/12 dB )

• Sliding record switch and hold function to prevent misoperation during recording
• Automatic file closing function to prevent the loss of already recorded data
• Built-in clock function, supports BWF files with included time informationconvenient for editing and searching
• Time track incrementing function can create new files at regular intervals (about every 15 minutes) during recording
• Playback function allows recorded data to be checked immediately
• Headphones output
• High-contrast, easy-to-read OLED display
• Micro USB-B connector for easy data transfer with a computer
• Records at least 10 hours on a single AAA battery using alkaline batteries (Evolta)
• Settings can be created as a text file on a computer and transferred to the recorder via USB
• Firmware can be updated using a microSD card
• Belt clip included
• Custom case for storing the unit and accessories included
