Description

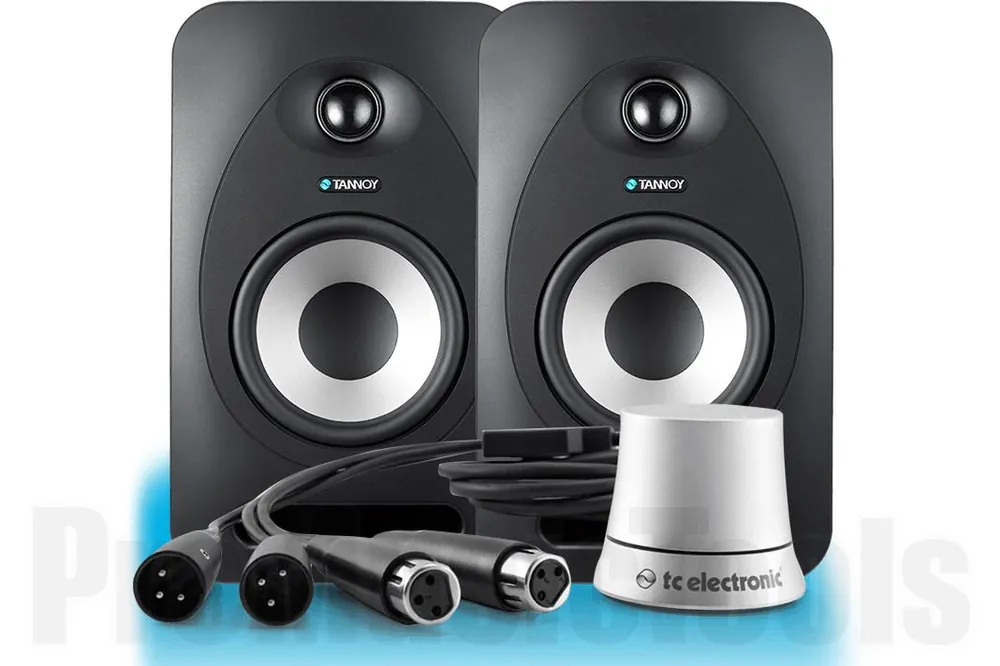

BIG MONITOR SOUND, ULTRA-COMPACT DESIGN
Dont be fooled by Reveal 402s compact size. Decades of experience in loudspeaker design and tweaking is the foundation for creating Reveal 402.
EXPERTLY VOICED FOR MASSIVE SWEET SPOT
Custom tweaked by Tannoys in-house speaker guru, Dr. Paul Mills, the active cross-over filters of Reveal 402 have absolutely impeccable timing.
EASY SETUP OPTION WITH AUX LINK
If youre anything like us, youre not only working on mixes but also listening to your favorite music! Reveal 402 gives you the ultimate pathway for both.
With the Aux Link, setting up has never been easier. Use the included mini jack cable to plug into your favorite music player and link your monitors for an instant stereo setupno need for external interfacesThis produces the ultimate sweet spot so that you can move around in your workspace without losing the stereo imaging of your mixas well as invite people to sit in with you during mixing sessions.The result is a massive soundscape generated by the super-efficient 4 woofer and ultra-precise 3/4 tweeter.
TECHNICAL SPECIFICATIONS
General
Frequency Response – 56 Hz – 48 kHz
Max SPL – 101 dB
Membrane Sizes
HF – 3/4″ Soft Dome (19 mm)
Bi-amp Output Power, RMS
Power Output – 50 Watts
LF/Mid Range – 25 Watts
HF – 25 Watts
THD < 0.9 %
Input Types and Impedances
Balanced – XLR, 20 kOhm
Unbalanced – 1/4″ Jack, 10 kOhm
AUX Link – Mini Jack, 10 kOhm
AUX Link Output – Mini Jack
EQ Options
HF EQ Settings – -1.5 dB HF Cut / Neutral / +1.5 dB HF Boost
Crossover Frequency – 2.5 kHz
Low Frequency Alignment – Optimized Front Port
Cabinet Dimensions
HxWxD, inches – 9.5 x 5.8 x 8.4
HxWxD, mm – 240 x 147 x 212
