Description

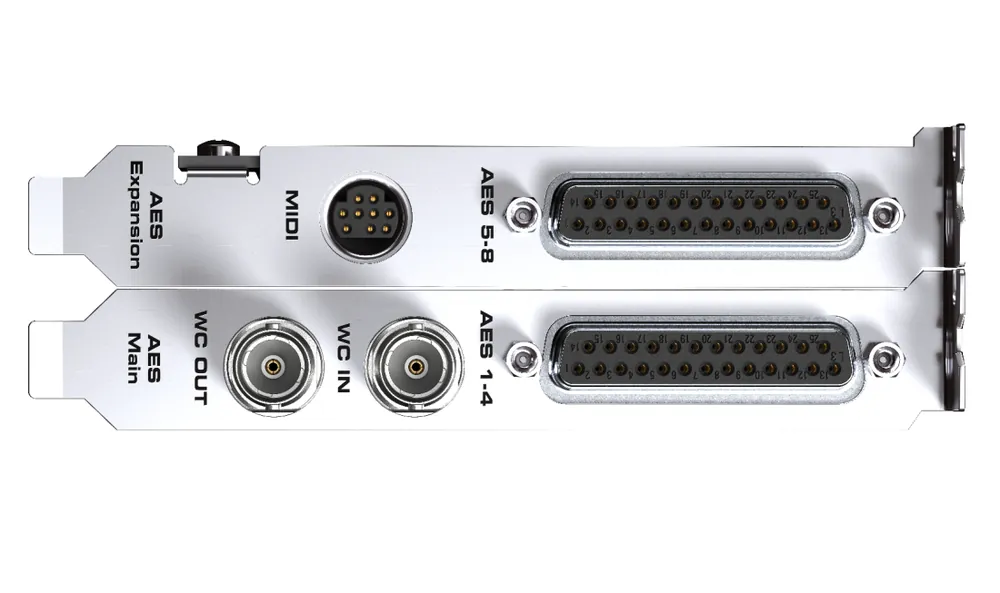

The HDSPe AES is a short-length PCI Express card with AES/EBU interfaces. It provides eight AES inputs (16 channels) and eight AES outputs (16 channels) at 192 kHz sample rate. The card is also equipped with two MIDI I/O ports, word clock I/O, and can be used with the optional TCO module for synchronization to LTC and video.
The HDSPe AES is RMEs reaction to requests from audio professionals for an AES-based solution with the typical RME features and quality. This audio card is a perfect all-in-one solution for professional users in the fields of broadcast, TV, theater, stage/PA – and in any professional studio.
The card is not based on a PCI to PCI Express bridge, which would simply add PCIe to existing PCI technology. It is a newly developed genuine PCI Express solution, which consequently takes full advantage of the new format, achieving significant performance gains in multitrack audio and lowest latency.
Connectivity
8 x AES/EBU I/O
1 x Word Clock I/O
2 x MIDI I/O
TotalMix FX
ARC USB
Features
Support for 192 kHz at full channel count
Native support for Double and Quad Wire transfer
Direct conversion between these formats
SteadyClock for highest jitter suppression and clock regeneration
Intuitive and clearly laid-out user interface
TotalMix: 512 channel mixer with 42 bit internal resolution
48 level meter Peak/RMS, hardware-computed
Specs
1-Lane PCI Express Endpoint device (no PCI Express to PCI Bridge), revision 1.1.
2.5 Gbps line speed
Packet-based full-duplex communication (up to 500 MB/s transfer rate)
All settings: changeable in real-time
Automatic and intelligent master/slave clock control
Enhanced Zero Latency Monitoring for latency-free submixes and perfect ASIO Direct Monitoring
Sync sources: 8 x AES, word clock, internal
Varipitch: by input signal or word clock
Sample rates: 32 kHz up to 192 kHz, variable (Sync/word clock)
Sample rate range: AES: 28 kHz – 204 kHz, word clock: 28 kHz – 204 kHz
Jitter: < 1 ns, internal and all inputs
Jitter sensitivity: PLL operates even at 100 ns Jitter without problems
Comes with DIGICheck: the ultimate measurement, analysis and test tool
Input 8 x AES, 2 x MIDI, word clock (BNC)
Output 8 x AES, 2 x MIDI, word clock (BNC)
Input word clock: BNC, Signal Adaptation Circuit (functional from 1.2 Vpp input signal), termination via jumper
Output word clock: BNC, low-impedance driver stage, 4 Vpp into 75 Ohms, short-circuit-proof
MIDI input and output: via four 5-pin DIN jacks
