Description

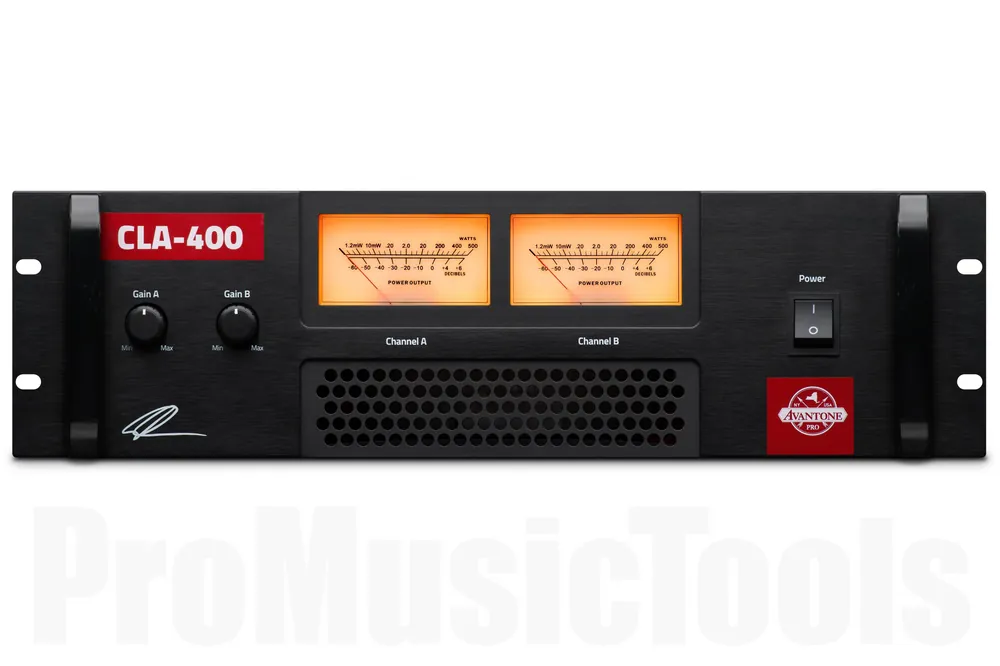

Avantone Pro – CLA-400 Class A/B Studio Power Amp – 400w/CH
Specifications
- 8 STEREO POWER (1KHZ): 360W
- 4 STEREO POWER (1KHZ): 540W
- 8 BRIDGE POWER (1KHZ): 760W
- SLEW RATE (AT 1KHZ): 28V/us
- INPUT SENSITIVITY (1KHZ): 0.775V (0dBU)
- TOTAL HARMONIC DISTORTION (1KHZ): <0.1%
- INTERMODULATION DISTORTION (AT 10% RATED POWER 1KHZ): <0.1%
- CROSSTALK: -70dB
- FREQUENCY RESPONSE: 20Hz-20kHz +/-0.5dB
- INPUT IMPEDANCE: (Balanced) 20K (Unbalanced) 10k
- DAMPING FACTOR(100HZ, 8): 250
- SIGNAL TO NOISE RATIO (A WEIGHTED): 103dB
- AMPLIFIER: Class AB
- DIMENSIONS: 483Wx133Hx487D (19×5.25×18)
- WEIGHT: 22.2kg (49lb)
