Description

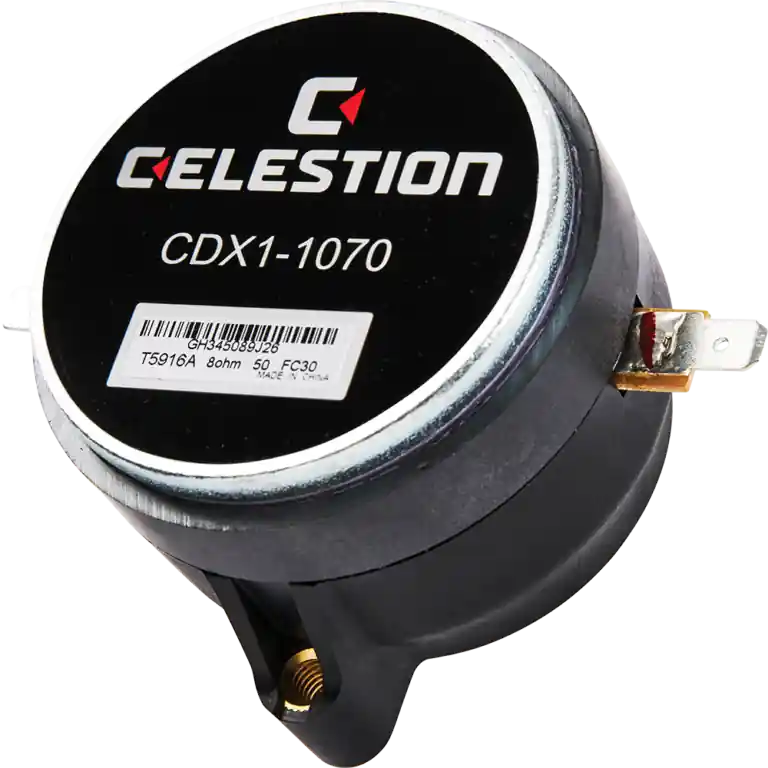

Celestion 1″ compression driver.
Specifications
Power Rating: 12W
Continuous Power Rating: 24W
Rated Impedance: 8
Sensitivity: 106 dB
Frequency Range: 1500Hz – 20,000Hz
Recommended min. crossover: 2200Hz
Magnet Type: Ferrite
Voice Coil Diameter: 25 mm
Voice Coil Material: Copper clad aluminium
Diaphragm Material: PETP film
Surround Material: PETP film
Width: 70 mm (2.8″)
Depth: 50.0 mm (2″)
Fitting: Bolt (2 x M6 holes on 76 mm/3″ PCD)
Throat Exit: 25 mm (1″)
Horn 1 (Part Number): T5359
Horn 1 (): H1-9040P
Horn 2 (Part Number): T5134
Horn 2 (): H1-7050 « No Bell »
Mounting Information
Width: 70 mm (2.8″)
Depth: 50 mm (2″)
Unit Weight: 0.7 kg (1.5 lbs)
Fitting: Bolt (2 x M6 holes on 7 6mm/3″ PCD)
Throat Exit: 25 mm (1″)
