Description

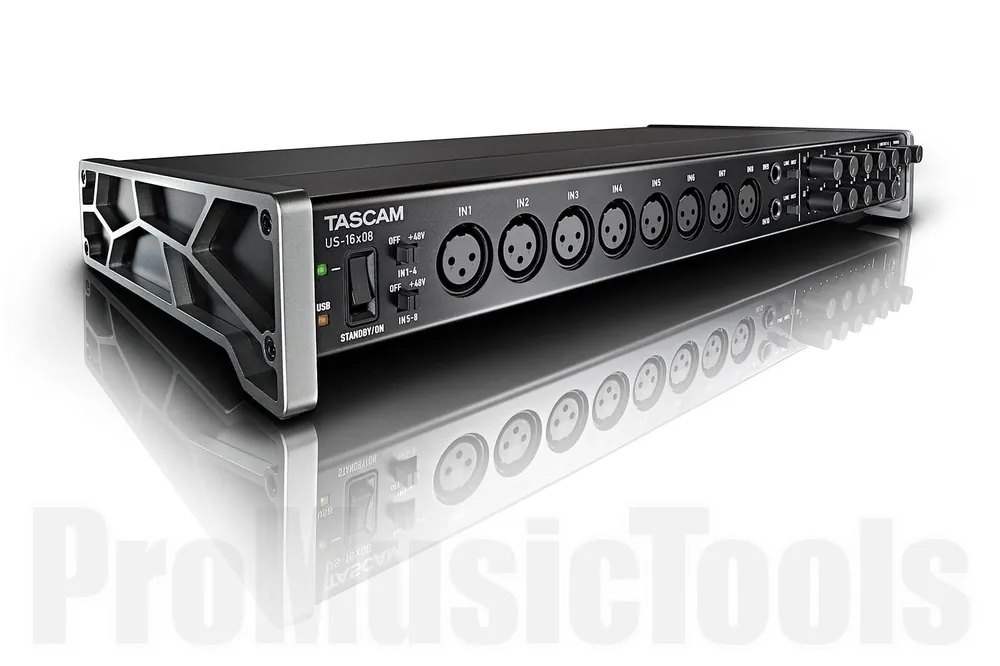

Tascam US-16X08

The US-16×08 provides your computer with 16 great-sounding microphone and line inputs, as well as additional features for larger sessions. Its eight Ultra HDDA microphone preamplifiers feature extremely low input noise and a gain range of 56 dB. Of the additional eight balanced line inputs, two are switchable for direct connection of a guitar or bass. Eight balanced line outputs are used to output the signals fed back from the computer or internally mixed, two of which have level controls on the front of the device.

The US-16×08 includes a DSP mixer that enables low latency digital mixing. 4-band tone control and compressor in each channel ensure pleasant-sounding monitor mixes. In addition to using it as an interface, there is also the option of operating the device as an independent microphone preamplifier. Drivers are available for Windows and Mac OS, and thanks to USB Audio Compliance 2.0 The interface itself can be used with iOS devices such as the Apple iPad. MIDI input and output are also available.

Thanks to its slanted housing shape, the US-16×08 can be operated on a table at home or taken on tour when installed in a rack using the included brackets. In both cases, it offers enough inputs and outputs for almost every conceivable recording situation.

Main features/h3>

• High quality Ultra HDDA microphone preamplifiers with extremely low input noise (EIN: -125 dBu)
• Recording with up to 96 kHz sampling rate at 24 bit resolution
• Supports Mac and Windows operating systems
• Multi-channel audio transmission to and from a computer connected to the interface via USB 2.0 (16 inputs, 8 outputs)
• Operating mode selectable between audio interface and standalone microphone preamplifier
• Built-in DSP mixer for monitoring
• Low latency monitoring via the DSP mixer
• Compressor and 4-band EQ in each input channel of the DSP mixer
• Eight balanced XLR microphone inputs with phantom power
• Two balanced jack inputs, switchable between line and instrument level
• Six symmetrical jack inputs on the back
• Eight balanced jack outputs
• Standard headphone jack
• MIDI input/output
• USB Audio Compliance 2.0 for connection to iOS devices
• Compatible with common DAW applications (ProTools, Cubase, Live, Studio One, Garage Band)
• Rack installation kit included

• Special AC adapter included
• Housing shape enables slanted installation with easy accessibility

New features with firmware version 2.0

• By selecting an alternative driver, you can now play sources via ASIO and WDM simultaneously
• A notification function keeps you up to date with current information
• The automatic update notification helps you keep your software and firmware up to date (the update process can be initiated at the push of a button)

New features with firmware version 2.1

• The internal mixer can be bypassed, which is helpful if you use an external microphone preamplifier
• Choose whether the signal received from the computer is mixed into the stereo mix or not

New features with Windows USB driver version 4.0

• By choosing a buffer size of four samples or more, extremely short latency times can now be achieved (assuming a powerful computer)
• Optimized display of the software window depending on the screen resolution
• Once again improved overall stability
